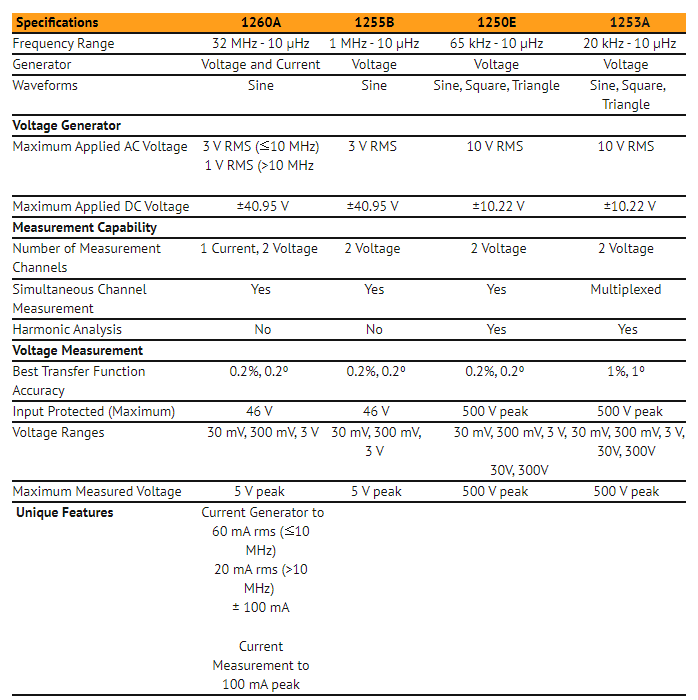

■ Frequency Response Analyzers

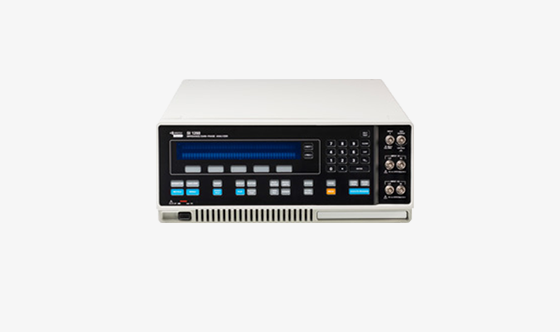

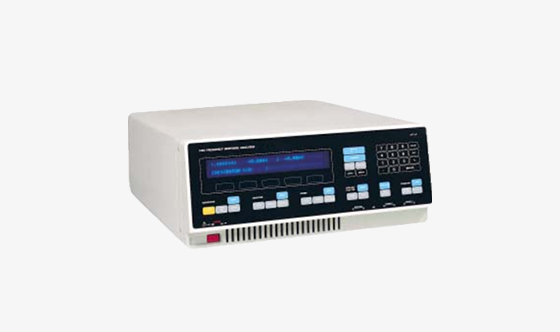

<1260A Impedance /Gain-Phase Analyzer>
• Frequency Range: 32 MHz ~ 10 uHz

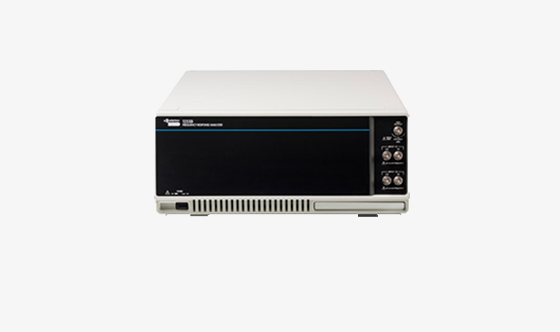

<1255B Frequency Response Analyzer>
• Frequency Range: 1 MHz ~ 10 uHz

1253A Frequency Response Analyzer
• Frequency Range: 65 kHz ~ 10 uHz

<1250E Frequency Response Analyzer>
• Frequency Range: 20 kHz ~ 10 uHz

■ Potentiostat & Impedance Analyzer

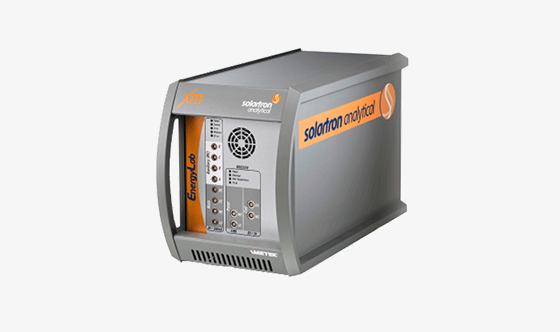

<EnergyLab XM>
• Voltage: ±8 V (HV : ±100 V)
• Max. Current output: ±2 A up to ±100 A
• Min Current Range: ±30 nA(1.5 pA reaolution)
• EIS: 10 μHz to 1 MHz

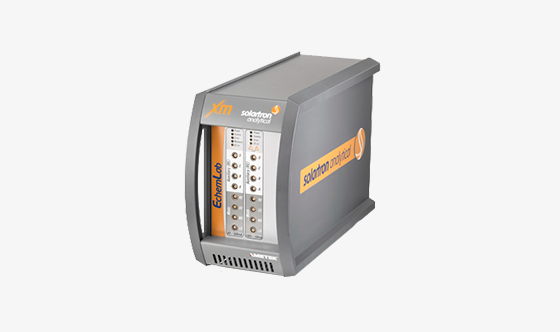

<EchemLab XM>
• Voltage: ±100 V
• Max. Current output: ±300 mA up to ±100 A
• Min Current Range: ±30 nA (1.5 pA reaolution)
• EIS: 10 μHz to 1 MHz

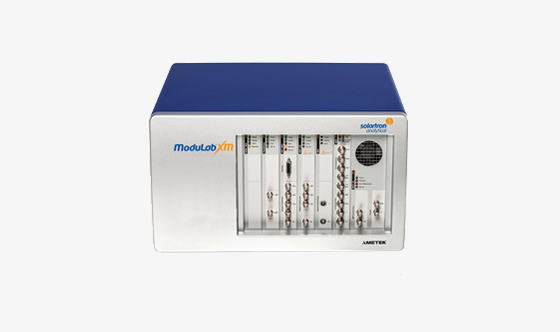

<ModuLab XM ECS>
• Voltage: ±8 V up to ±100 V)
• Max. Current output: ±300 mA up to ±100 A
• Min Current Range: ±30 nA(1.5 pA reaolution) to ±30 pA(1.5 fA)
• FRA Option: 10μHz ~ 300KHz 또는 1MHz 선택 가능 / 10uΩ ~ 100TΩ측정 가능

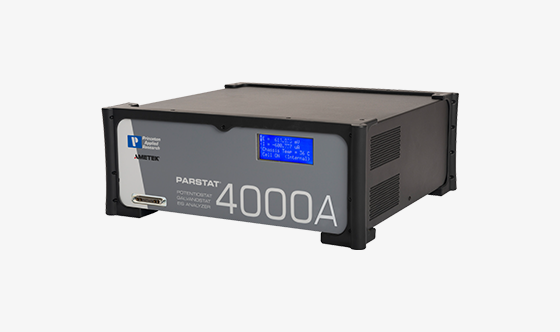

<PARSTAT 4000A>
• Voltage: ±48 V
• Max. Current output: ±4 A up to ±20 A
• Min Current Range: ±40 pA (1.2 fA resolution down to ±80 fA(2 aA)
• EIS: 10 MHz

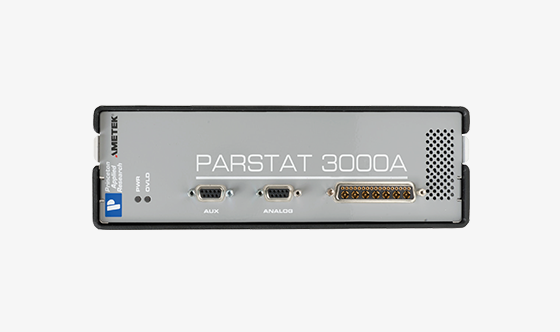

<PARSTAT3000A>
• Voltage: ±48 V
• Max. Current output: ±4 A up to ±20 A
• Min Current Range: ±4 nA (122 fA resolution down to ±4 pA(122 aA)
• EIS: 7 MHz

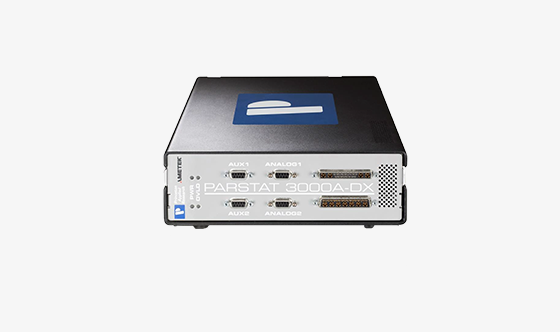

<PARSTAT3000A DX - Bipotentiostat>
• Voltage: ±30 V (ch. 2)
• Max. Current output: ±2 A(ch.1)
• Min Current Range: ±4 nA (122 fA resolution down to ±4 pA(122 aA) (ch.1)
• EIS: 7 MHz (ch. 2)
          1 MHz (ch. 1)

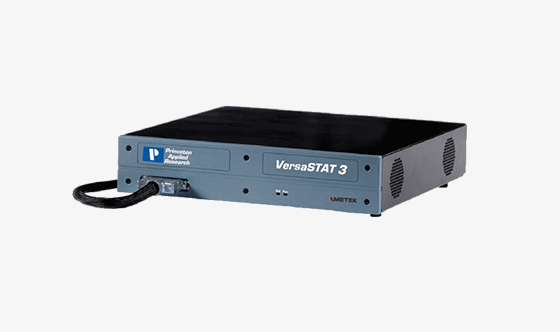

<VersaSTAT3 Potentiostat & Impedance Analyzer>
• Voltage: ±12 V
• Current range: ±200 nA(6 pA Resolution) down to± 4 pA(122aA)
• EIS: 1 MHz (옵션)

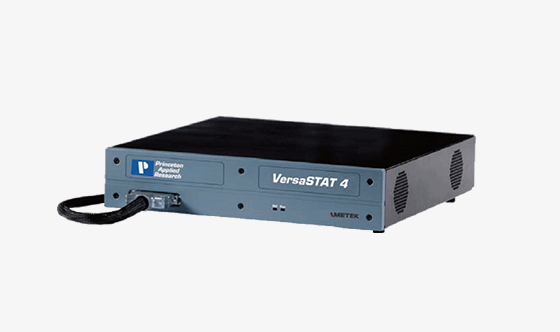

<VersaSTAT4 Potentiostat & Impedance Analyzer>
• Voltage: ±12 V
• Current range: ±4 nA(122 fA Resolution) down to± 4pA(122aA)
• EIS: 1 MHz (옵션)

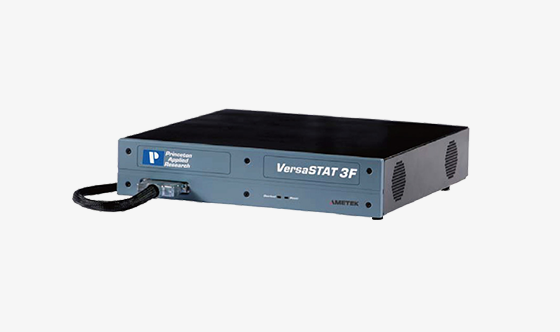

<VersaSTAT3F Potentiostat & Impedance Analyzer>
• Voltage: ±12 V
• Current range: ±4 nA(122 fA Resolution) down to± 4pA(122aA)
• EIS: 1 MHz (옵션)

■ Multi-Potentiostat & Impedance Analyzer

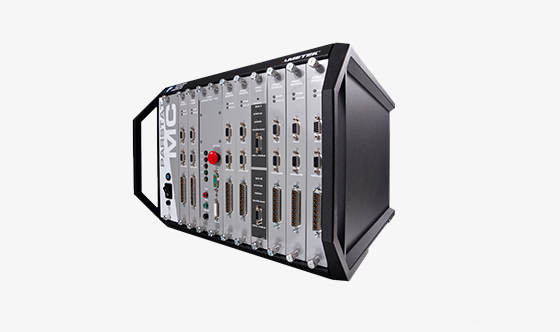

<PARSTAT MC Multi-channel Potentiostat>
• Voltage: ±10 V(PMC-200), ±12 V(PMC-1000), ±30 V(PMC-2000A)
• Max. Current output: ±2 A(PMC-1000), ±1 A(PMC-2000A/ PMC-200)
• Min Current Range: ±2 uA(PMC-200), ±4 nA to ±4 pA (PMC-1000), ±4 nA(PMC-2000A)
• EIS: 10µHz ~ 7MHz
• 최대 20 채널

■ PhotoEchem Potentiostat & Impedance Analyzer

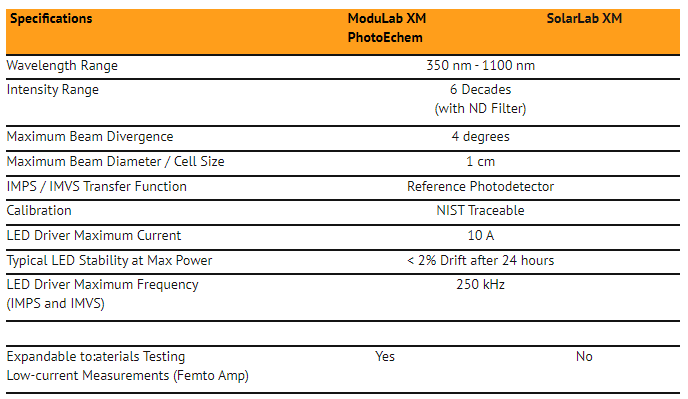

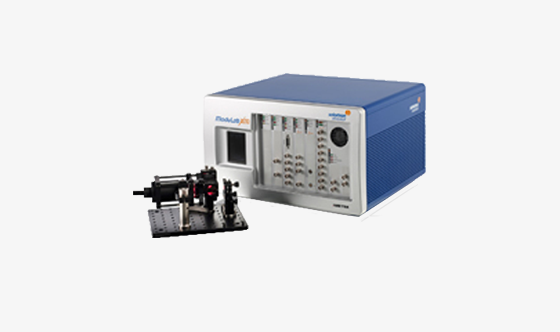

<Modulab XM PhotoEchem>
• Wavelength Range: 350 nm - 1100nm
• Intensity Range: 6 Decades (with ND Filter)
• Max Beam Diameter/cell size : 1cm
• Potentiostat
   - Voltage Range : ±8 V (옵션 모듈 추가 시 ±100 V)
   - Maximum Current : ±300mA(옵션 모듈 추가 시 ±2)
   - Current Range : 300mA to 30nA
   -Frequency Range : 10uHz to 1MHz or 10uHz to 300kHz

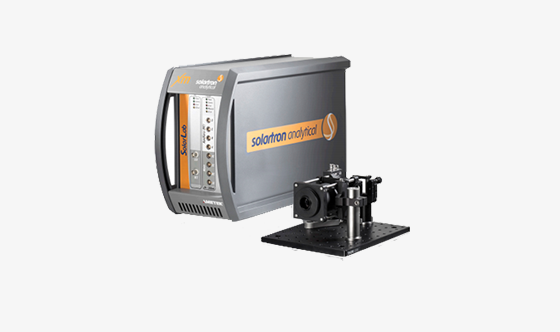

<SolarLab XM>
• Wavelength Range: 350 nm - 1100nm
• Intensity Range: 6 Decades (with ND Filter)
• Max Beam Diameter/cell size : 1cm
• Voltage Range : ±8V, resolution : 1µHz
• Current Range : ±300 mA, resolution : 1pA

제품 문의 바로 가기
