전기화학: Electrochemistry

전기화학: Electrochemistry > Potentiostat

PARSTAT3000A

전기화학: Electrochemistry > Potentiostat

PARSTAT3000A

PARSTAT3000A은 ±30V의 Compliance voltage로 저항이 큰 부식 실험 등도 가능하며 Auxiliary cable로 추가 voltage 측정이 가능합니다.

[ 제품문의 031-460-9311 ]

제조사
AMETEK Princeton Applied Research
원산지
미국

■ Features

* 최대 전류 범위 : ±1A
* 최소 전류 범위 : 4nA
* Compliance voltage : ±30V
* Polarization voltage : ±30V
* Data acquisition rate : 1μs
* FRA 내장 (범위 : 7MHz)
* 소프트웨어(VersaStudio) 포함
* E2 Voltage Channel (6-WIRE)
* E and I Monitor

■ Configurations



<  6-wire >
  - Standard 2nd voltage measurement
  - Fully coordinated range, offset and gain allows accurate impedance experiments
  - Synchronized data acquisition

■ Applications

* Energy-Storage
   - Simultaneous Anode/Cathode impedance
   - Separator Impedance
   - Simultaneous single cell and stack tests
* Physical Electrochemistry, Corrosion
   - pH, temperature, pressure probe input
   - Capture Δ Frequency and Resistance from EQCM
   - Measure Compliance Voltage used during experiment

  • PARSTAT 3000-Application.jpg

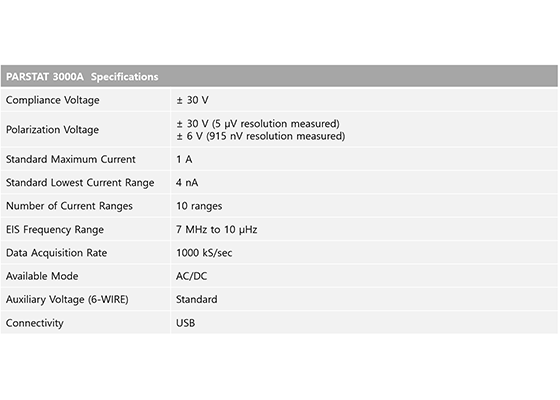

■ Specifications

  • Product-Image_mobile_Details_P3k_Spec.png

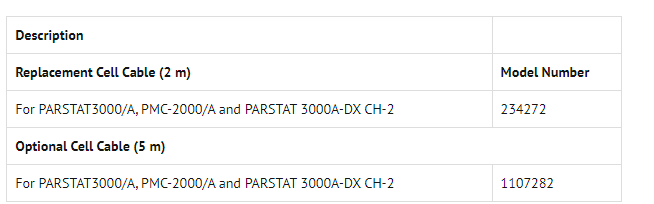

■ Options & Accessories

  • PARSTAT3000A-options.png
